The 3 Layer Line is not a Commodity. The Right One is a Competitive Advantage
The 3 layer co-extrusion blown film line is the engine behind most flexible packaging operations in the world, serving as the backbone of a modern industrial blown film line operation.But there is a wide gap between a line that produces film and a solution that produces film profitably, consistently, and at the output levels modern packaging demands. Mamata 3 Layer film plants are built to close that gap.
Here is what most packaging manufacturers already know: 3 Layer co-extrusion film covers the majority of flexible packaging applications – food pouches, industrial liners, retail bags, agriculture films, and more. The technology is proven. The demand is steady. And the converters who run high-performance 3 layer lines at optimal efficiency consistently outperform those who do not.
What fewer manufacturers appreciate is how much performance varies between 3 layer systems – in film uniformity, gauge consistency, material distribution, output rate, and energy consumption. These differences compound over thousands of hours of production. They show up in material waste, client rejects, machine downtime, and ultimately in the margins that determine whether a job is worth running.
Mamata, a leading blown film plant manufacturer, engineers 3 Layer blown film lines with advanced co-extrusion technology and precision process controls designed to deliver consistent film quality at the output levels that make flexible packaging operations genuinely profitable. Not just capable – optimized.
Specifications – 3 Layer Blown Film Extrusion Machine
The table below outlines the key technical parameters of our 3 Layer blown film extrusion machine configurations. Full production specifications are provided by the Mamata sales and technical team upon inquiry.

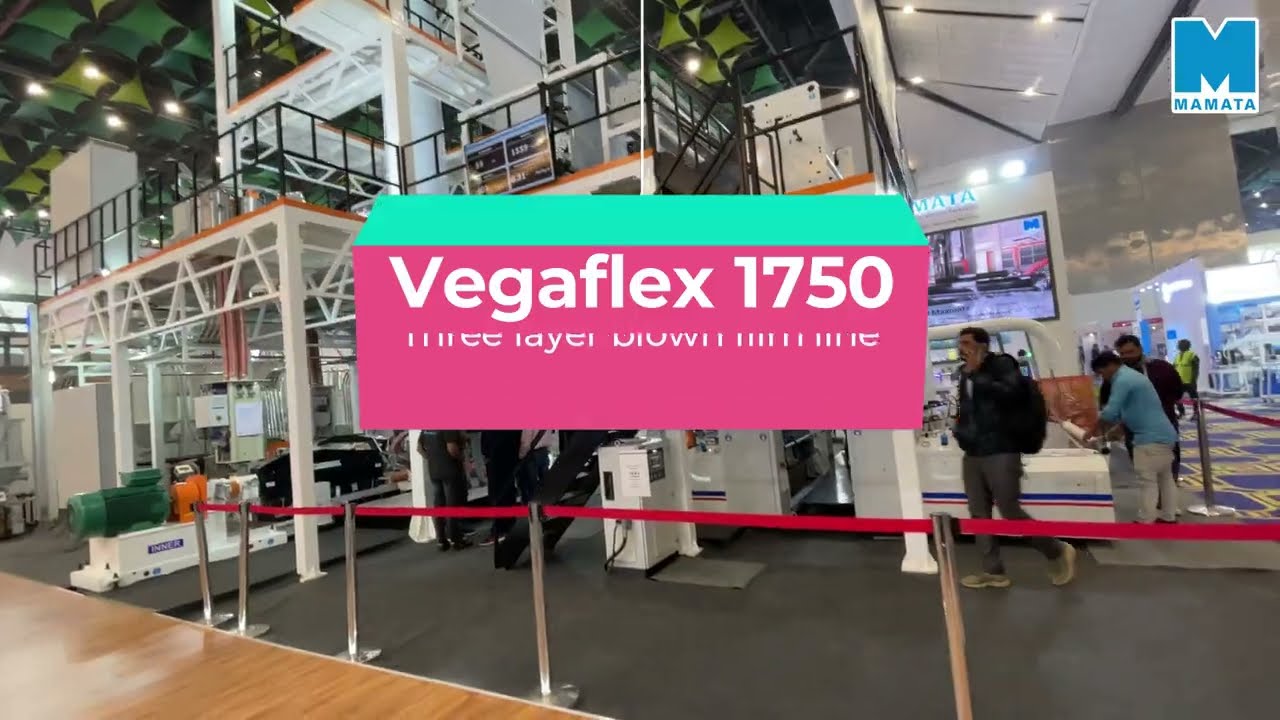

Vegaflex (Advantage) Pre-Customised 3 Layer Line
| Line Width (mm) | 900 | 1200 | 1450 | 1750 | 1950 | 2135 |
| Max. Film Width (mm) | 800 | 1100 | 1350 | 1650 | 1850 | 2000 |
| Die Size (mm) | 180 | 250 | 300 | 350 | 375 | 400 |
| Max. Output (kg/hr)* | 120–150 | 150–180 | 210–240 | 250–280 | 270–300 | 280–320 |
MAMATA Customised 3-Layer Lines (with IBC System & Line Automations)
| Width of Line (mm) | 1625 | 1875 | 2125 | 2375 | 2625 | 2875 | 3125 | |||||||
| Winder | Surface Winders up to 3000 mm LFW | |||||||||||||
| Haul-off | Horizontal Oscillating Haul-off | Vertical Oscillating Haul-off | ||||||||||||
| Bubble Cage Rollers Type | Silicon Sleeve | Carbon Fibre Rollers | ||||||||||||
| Output Range | 250 - 1000 kg/hr | |||||||||||||
| Extruders (mm) | 40 | 50 | 65 | 75 | 90 | 120 | 150 | |||||||
| Die & Air Ring | 250 mm to 850 mm at an increment of 25 mm | |||||||||||||
| IBC System | 4+1 Pancake IBC System with Controls | |||||||||||||
| Controls | HMI Type | SCADA Type | ||||||||||||
| Automations | Gravimetric Blending & Dosing System | Auto Width Control | Auto Gauge Control | Any other as per request | ||||||||||
| Auxiliaries & Ancillaries / Utilities / Panel | Web Guide | Corona Treater | Chiller | Compressor & Dryer | Testing Equipment | Others as per Requirements | ||||||||
| Tower | Tower Layout Drawings / Prefabricated Tower | |||||||||||||
Application
Optimized for a broad spectrum of flexible packaging markets. Primary application sectors include:
- Food Packaging
- Lamination Films
- Bread & Bakery Pouches
- Fresh Produce Wraps
- General Grocery Bags
- Industrial Films
- Stretch / Pallet Wrap
- Shrink Wrap
- Heavy-Duty Sacks
- Construction Films
- Liner Films
- Automotive Films
- Protective Films
- UV-Resistant Films
- Heat Resistant Films
- Agricultural Films
- Mulch Films
- Silage Stretch Wrap
- Greenhouse Films
- Fumigation Films
- Retail / Consumer
- Shopping Bags
- Promotional / Decorative Films
- Courier Bags
- Security Bags
- General-Purpose Multilayer Film Extrusion Applications Requiring Material Optimization.
Why the Film Line You Choose Matters More Than Most Manufacturers Realize
There is a widely held assumption in the industry that all 3 layer blown film lines are essentially the same at a specification level – and that price, lead time, and service are the real differentiators.
That assumption is expensive.
The real performance difference between a standard 3 layer line and an engineered solution shows up in three ways:
- Film uniformity and gauge consistency – directly affecting client rejection rates and material yield.
- Energy consumption per kilogram of output – a cost that compounds across every production shift.
- Process stability over sustained high-output runs – the difference between a line that performs on its first day and one that performs on its Infinity.
Mamata 3 Layer Blown Film Lines are engineered with advanced automation, energy-efficient extrusion systems, and precision control technologies designed to address all three – maximizing productivity, minimizing material waste, and delivering the film consistency that modern packaging clients demand.
Ready to Modernize Your 3 Layer Production Capability?
Whether you are expanding output, replacing ageing equipment, or entering a new packaging segment – the correct 3 Layer blown film line changes the economics of your entire operation.
