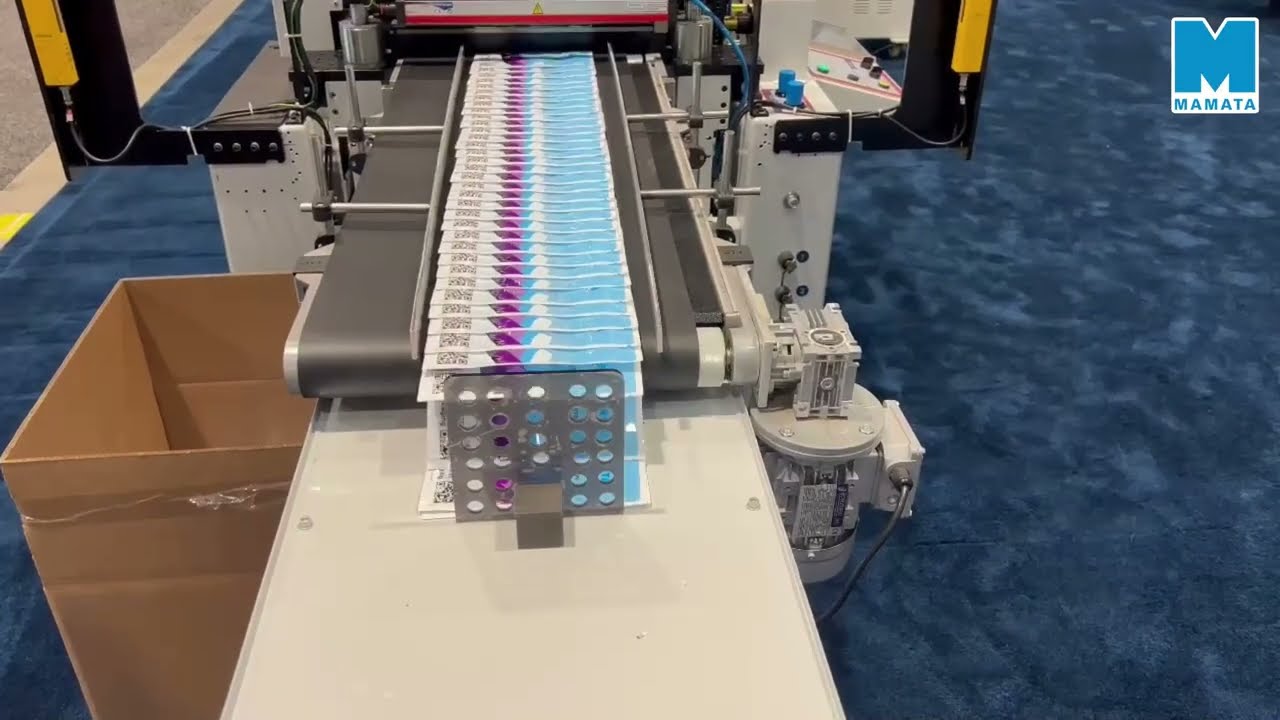

Advanced Servo Driven Stand-Up Pouch Making Machine
Overview
A high-performance servo driven pouch making machine designed for producing premium quality stand-up pouches and three side seal pouches with excellent sealing integrity & quality, speed and flexibility. The machine is engineered to process a wide range of films including conventional laminates as well as recyclable films. Quick job changeovers, digital save & recall of process parameters and shorter footprint ensures consistent and reliable production performance.
Maximum mechanical cycles up to 250 cycles/minute @ high productivity with superior seal integrity
Applications
Stand-up pouches, Three side seal pouches & Zipper pouches for Food packaging, FMCG packaging, Coffee packaging, Pet food packaging, Powder packaging etc.
Why Choose VEGA 500 SF
Ideal for converters requiring premium pouch quality, quick job changeovers and higher production efficiency. Advanced process control ensures reliable operation, consistent seal integrity and optimum packaging performance.
Specifications
| Types of Webs / Films | Laminates of PET, BOPP, Alu & paper etc and Recyclable Mono-material Films |
| Web Width (mm) | Max: 1220 | Min: 300 |
| Draw Length (mm) | Max: 700 with skip | Min: 75 |
| Maximum Speed (cycles/min) | 250 |
