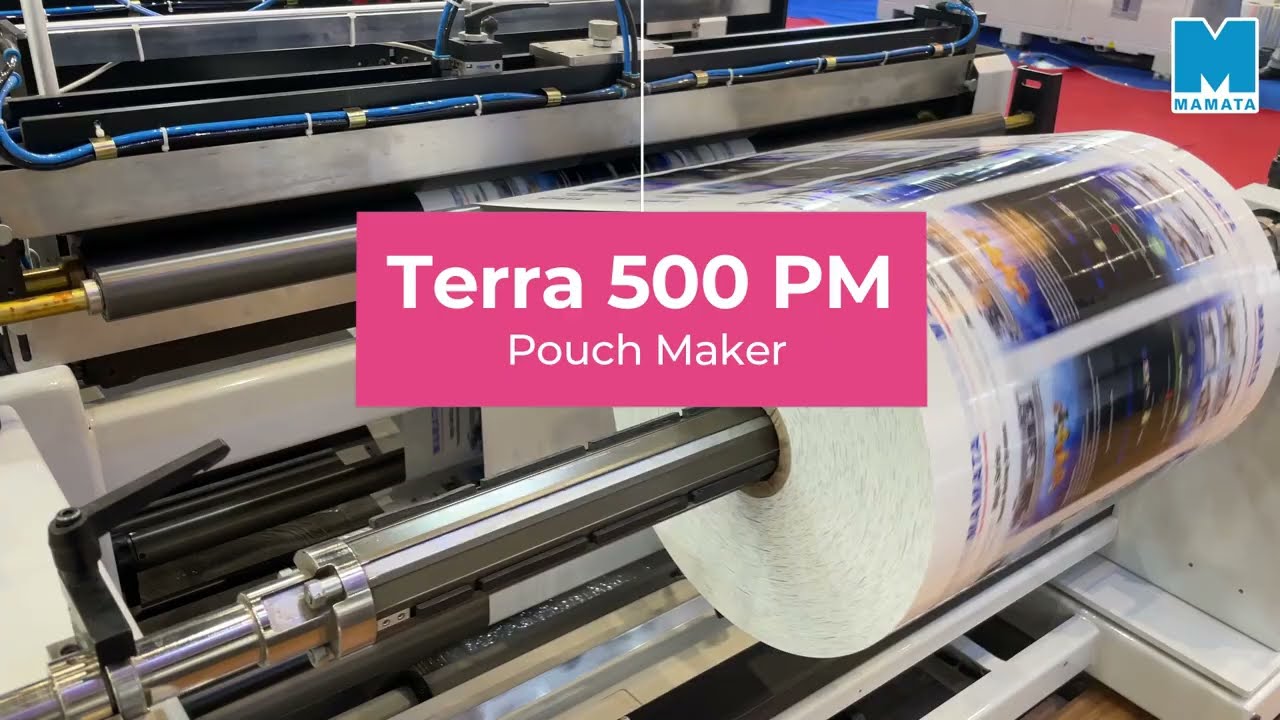

Servo Driven Stand-Up Pouch Making Machine
Overview
A high-performance servo driven pouch making machine designed for producing premium quality stand-up pouches and three side seal pouches with excellent sealing integrity & quality, speed and flexibility. The machine is engineered to process a wide range of films including conventional laminates as well as recyclable films. Quick job changeovers, digital save & recall of process parameters and shorter footprint ensures consistent and reliable production performance.
Maximum mechanical cycles up to 250 cycles/minute @ high productivity with superior seal integrity
Applications
Stand-up pouches, Three side seal pouches & Zipper pouches for Food packaging, FMCG packaging, Coffee packaging, Pet food packaging, Powder packaging etc.
Why Choose TERRA 500 PM
Converters looking for high seal integrity, reliability & consistency of production at high speeds and looking to process recyclable film structures in addition o conventional laminates at equal ease & production speeds, Terra 500 is a perfect solution. Search for a machine ends with Terra 500 when Converters are focused on developing newer solution using newer film structures. Exiting processors with larger scale of production can rely on Terra 500 due to its high reliability of pouch quality at high speed.
Specifications
| Types of Webs / Films | Laminates of PET, BOPP, Alu & paper etc and Recyclable Mono-material Films |
| Web Width (mm) | Max: 1220 | Min: 300 |
| Draw Length (mm) | Max: 700 with skip | Min: 75 |
| Maximum Speed (cycles/min) | 250 |
