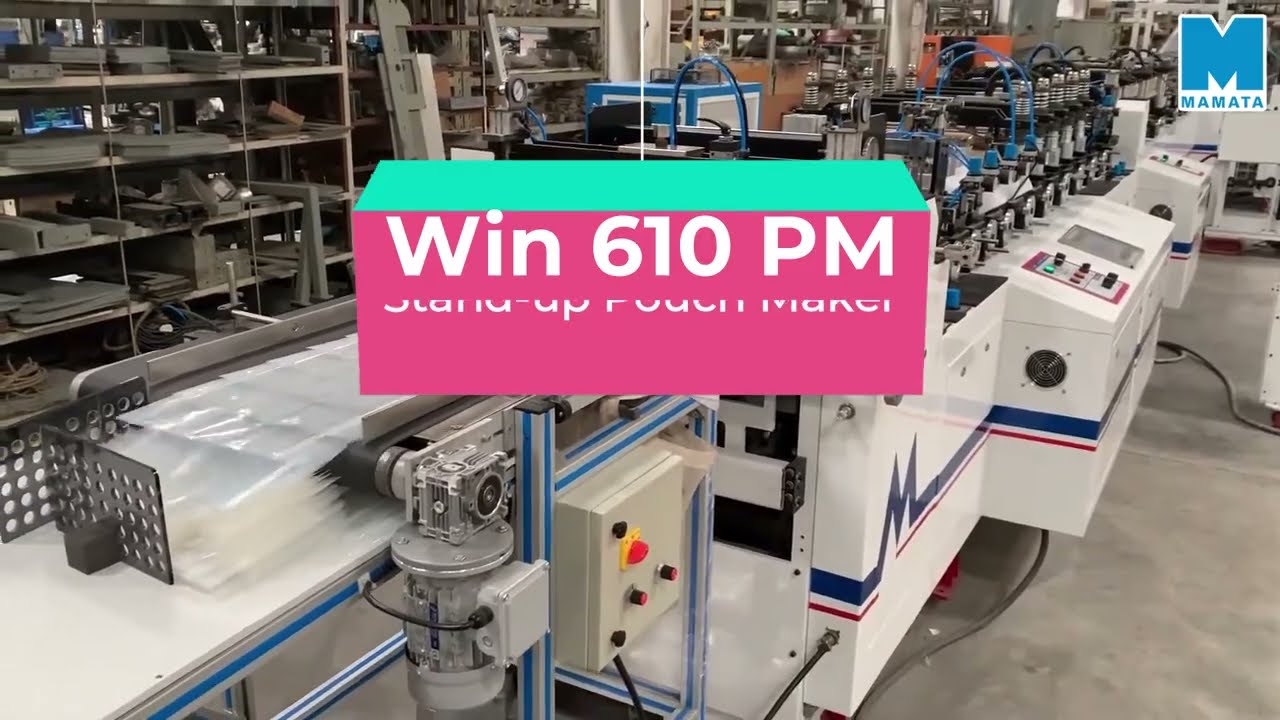

Large Format Stand-Up Zipper Pouch Making Machine
Overview
WIN 610 PM is a highly versatile pouch making platform designed for large size stand-up zipper pouch production with excellent operational stability and high-speed performance. It offers processing of stand-up pouches in 2-up format to achieve high production. Capability to manufacture center seal and five side seal pouches can also be added. Independent servo control on long seal and transverse seal stations ensures perfect seal impression and seal integrity. Process parameters can be optimized to achieve high production even with higher laminate thickness.
Applications
Large zipper pouches, Food packaging pouches, Industrial packaging pouches.
Why Choose WIN 610 PM
When you wish to run different kinds of pouches in a single machine at higher production rates, this is a perfect machine.
It combines both larger format pouches and smaller format pouches in a single machine. Therefore, if you are looking at project startup with highest flexibility or scaling production compared to your existing setup, this is the correct choice.
If you are looking at producing pouches with high thickness laminates, WIN 610 PM is the best option with modern process control.
Specifications
| Types of Webs / Films | Laminates of PET+PE, MET PET+PE, CPP+BOPP*** |
| Pouch Width (mm) | Max: 600 | Min: 200 |
| Draw Length (mm) - Without Skip | Max: 500 | Min: 75 |
| Draw Length (mm) - With Skip | Max: 1000 | Min: 200 |
| Maximum Speed cpm | 200 |
